PeopleLink Speaker Track camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up image and full-view image to frame the speaker(s). It frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.

    Speaker Track Pro

    A Transformative Blend of AI and Conferencing

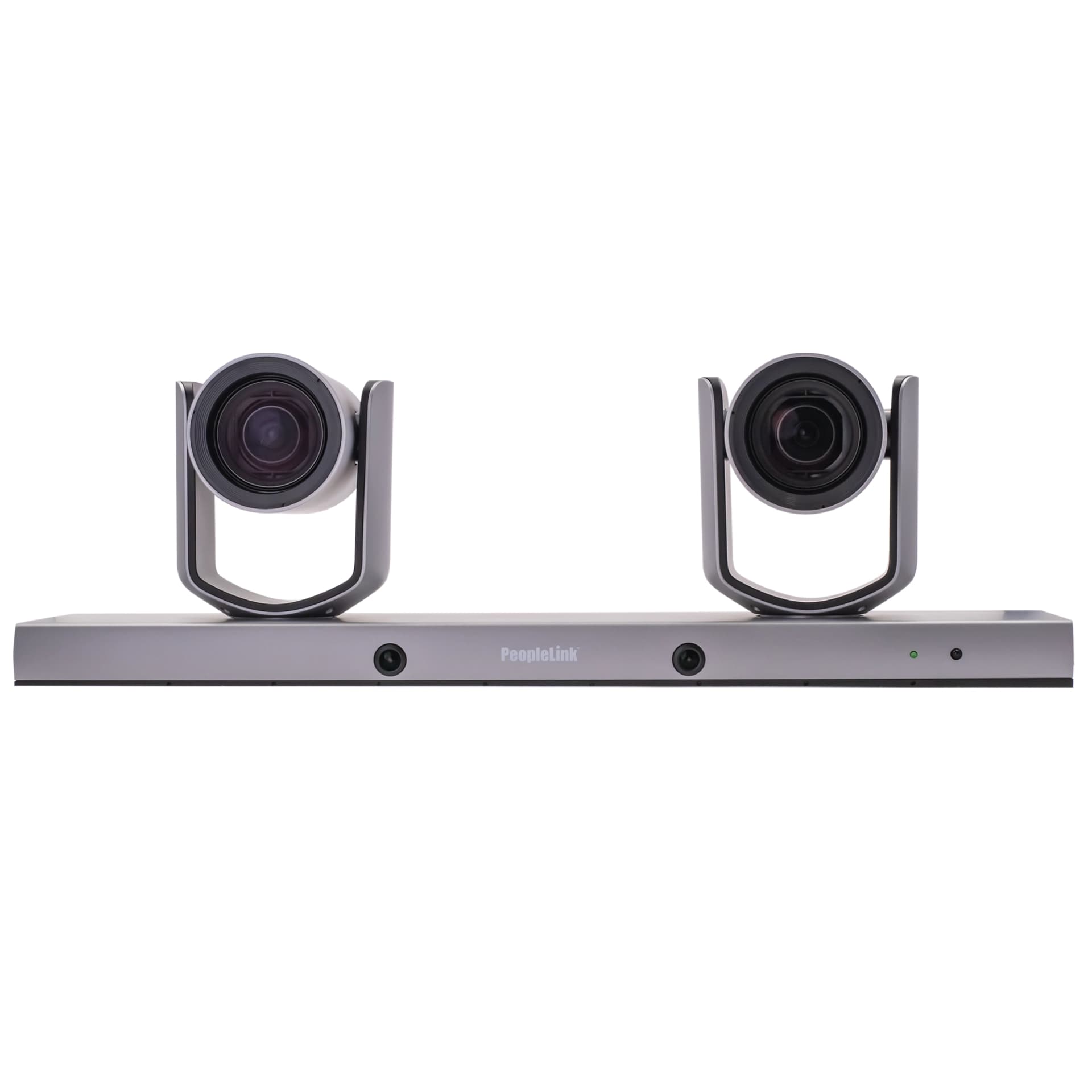

    PeopleLink Speaker Track Pro Camera(Front View)
    PeopleLink Speaker Track Pro Camera(Perspective View)
    PeopleLink Speaker Track Pro Camera(Back View)
    PeopleLink Speaker Track Pro Camera (TOP View)_V1
    PeopleLink Speaker Track Pro Camera(Front View) PeopleLink Speaker Track Pro Camera(Perspective View) PeopleLink Speaker Track Pro Camera(Back View) PeopleLink Speaker Track Pro Camera (TOP View)_V1
    • FHD 1080P @ 60fps
    • 12x Optical Zoom, up to 72.5° FoV
    • 3G-SDI, HDMI, USB2.0, Ethernet
    • H.264/H.265 Video Compression
    • Speaker Tracking, Audio Positioning Technologies
    • Built-in Image Switch Rules

    PeopleLink Speaker Track Pro Camera helps to improve the meeting with audio positioning and intelligent video analysis. The camera makes it possible to avoid manual operation due to automatic switching between close-up and full images based on speaker identification so that all participants can focus only on the discussion contents. This system maximizes the meeting experience by enabling dynamic framing of active speakers, which helps create a more interactive and productive team working environment.

    High Definition Video Clarity

    The Speaker Track  Pro camera has dual PTZ cameras and delivers cystal clear video in 1080P@60fps resolution, providing high-quality videos according to the various connectivity needs. It offers high-definition images that demonstrate clear vision.

    Speaker Track Standard
    peoplelink speaker track pro

    Dynamic Zoom with Wide Coverage

    This camera has 12x optical zoom and up to 72.5 Field of View, making it versatile for framing different meeting scenarios. The Speaker Track Pro Camera is perfect for meeting rooms, huddle rooms, or even bigger spaces to conduct regular catch-up calls.

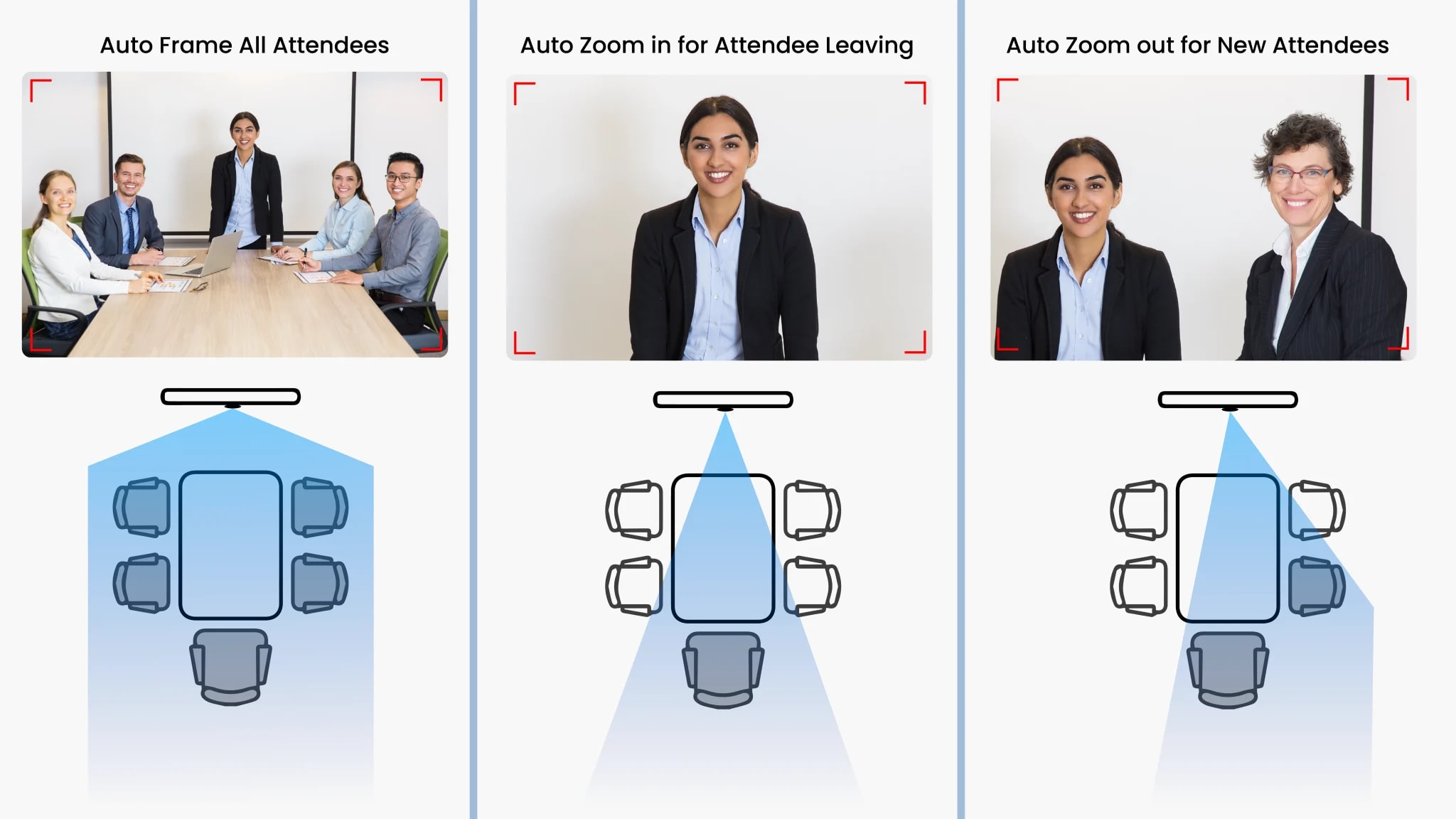

    Auto Framing & Speaker Tracking

    The Speaker Track Pro automatically changes close-up pictures for speakers and wide-lens photos for all attendees, saving attendance from manual adjustment and enabling concentrated discussions. It uses audio positioning, body detection, and recognition technologies to frame speakers so they induce a better conference precisely. The AI-based PTZ camera covers every angle in HD.

    peoplelink speaker track pro
    peoplelink speaker track pro

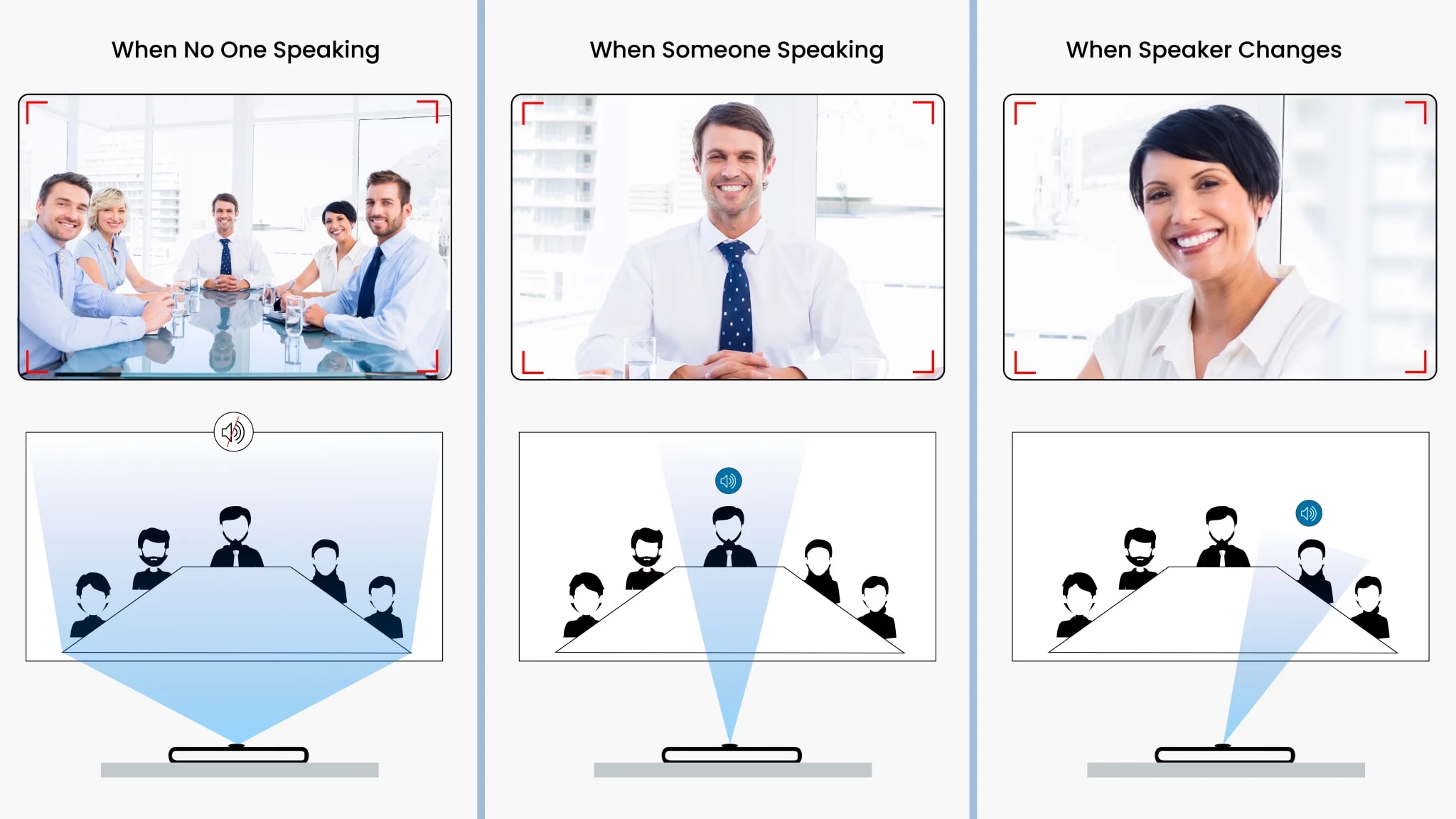

    Precise Voice Positioning

    Featuring a combination of voice source localization and lock tracking technology, this camera skillfully frames all attendees when there is no active speaker. Upon detecting a speaker, the camera dynamically locks onto and tracks them, providing a close-up shot for optimal visibility. The transition between speakers is executed seamlessly as the camera effortlessly locks onto and tracks the new speaker.

    Strong Anti-Interference Function

    The camera has the technology to focus only on the speaker. Canceling the voice interruption helps to concentrate on the speaker and the people attending any meeting virtually. Apart from that, it doesn’t even pick up regular noises like keyboard typing noises or more.

    peoplelink speaker track pro
    Peoplelink Speaker Track

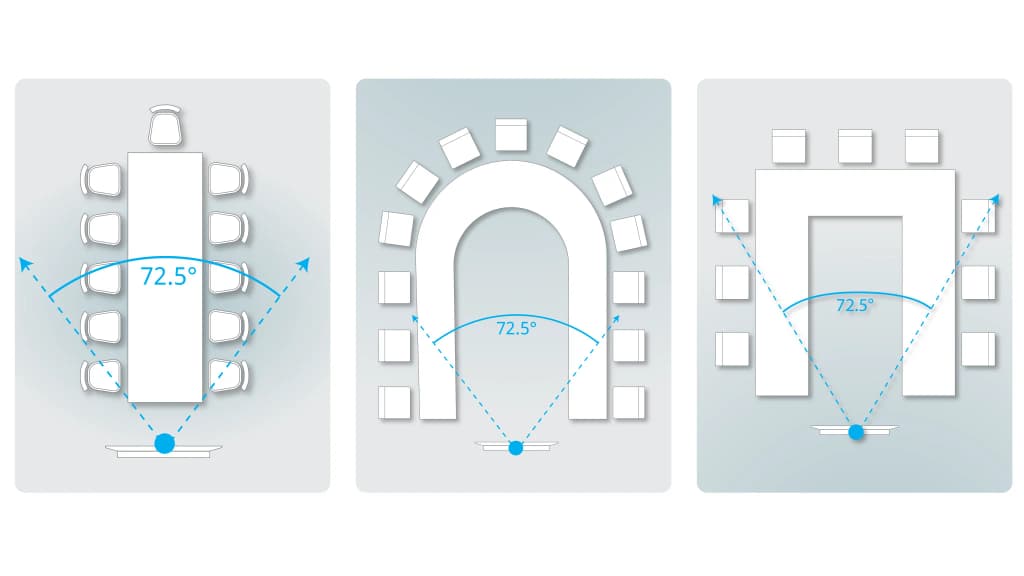

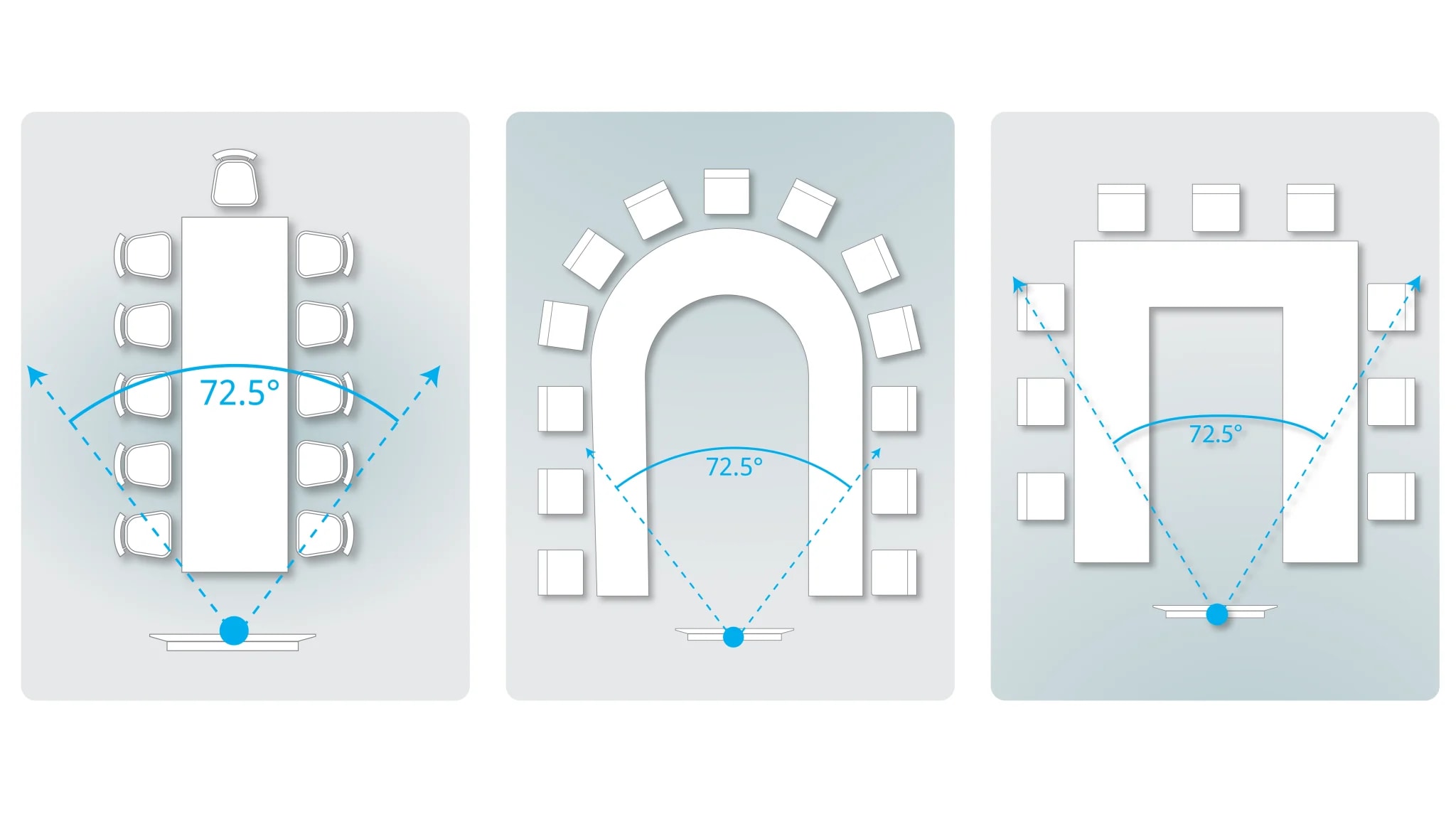

    Application in Multiple Spaces

    It can be used in several locations and spaces. The Speaker Track  Pro camera is primarily a perfect solution for Huddle Rooms, Meeting Rooms, Large Conference Rooms, Training rooms and Personal Office. It can be beneficial in both virtual and face-to-face meetings.

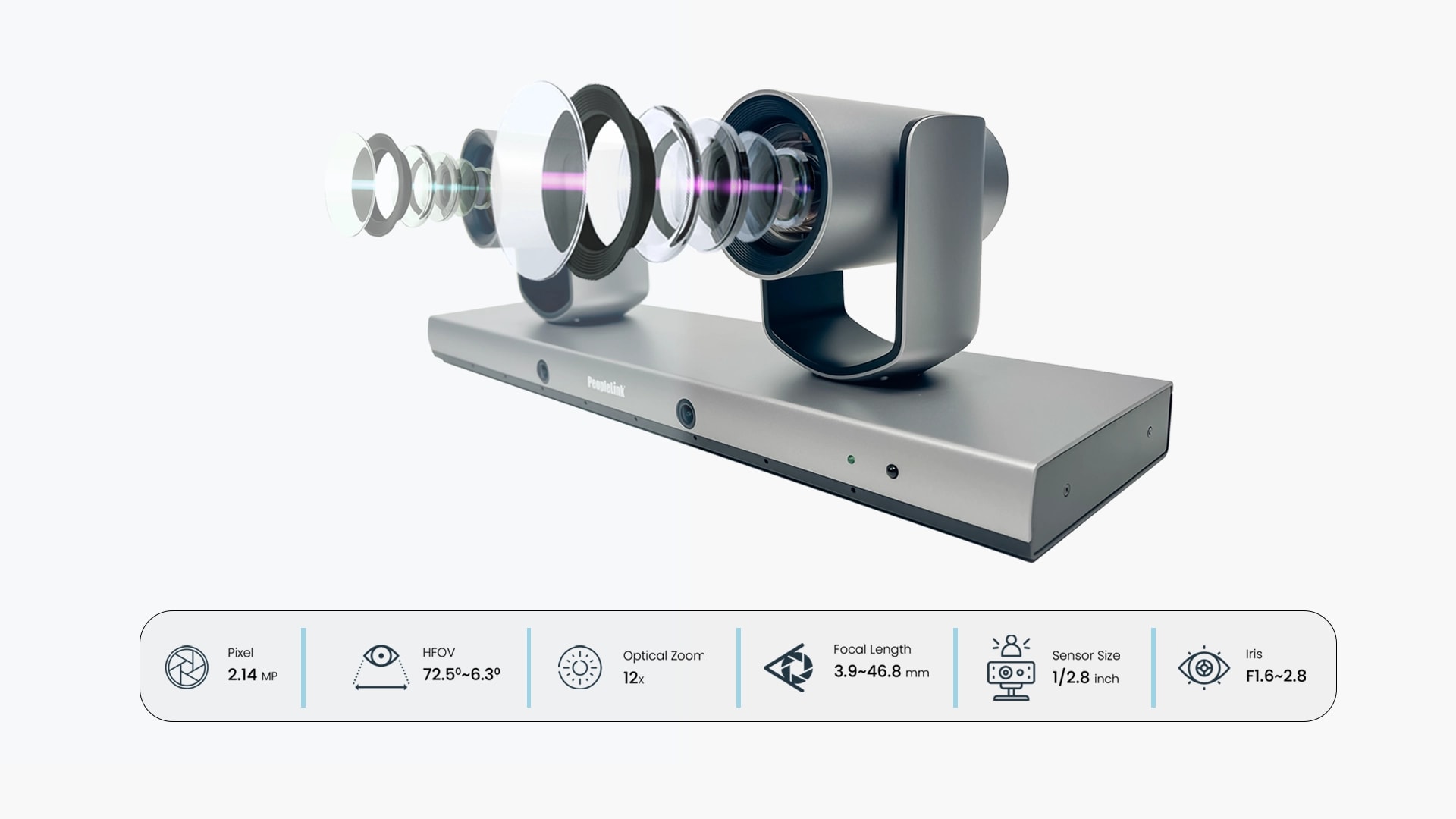

    Wide Angle HD Lens Transmitting Clear Pictures

    1080p@60fps HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.

    peoplelink speaker track pro
    peoplelink speaker track pro

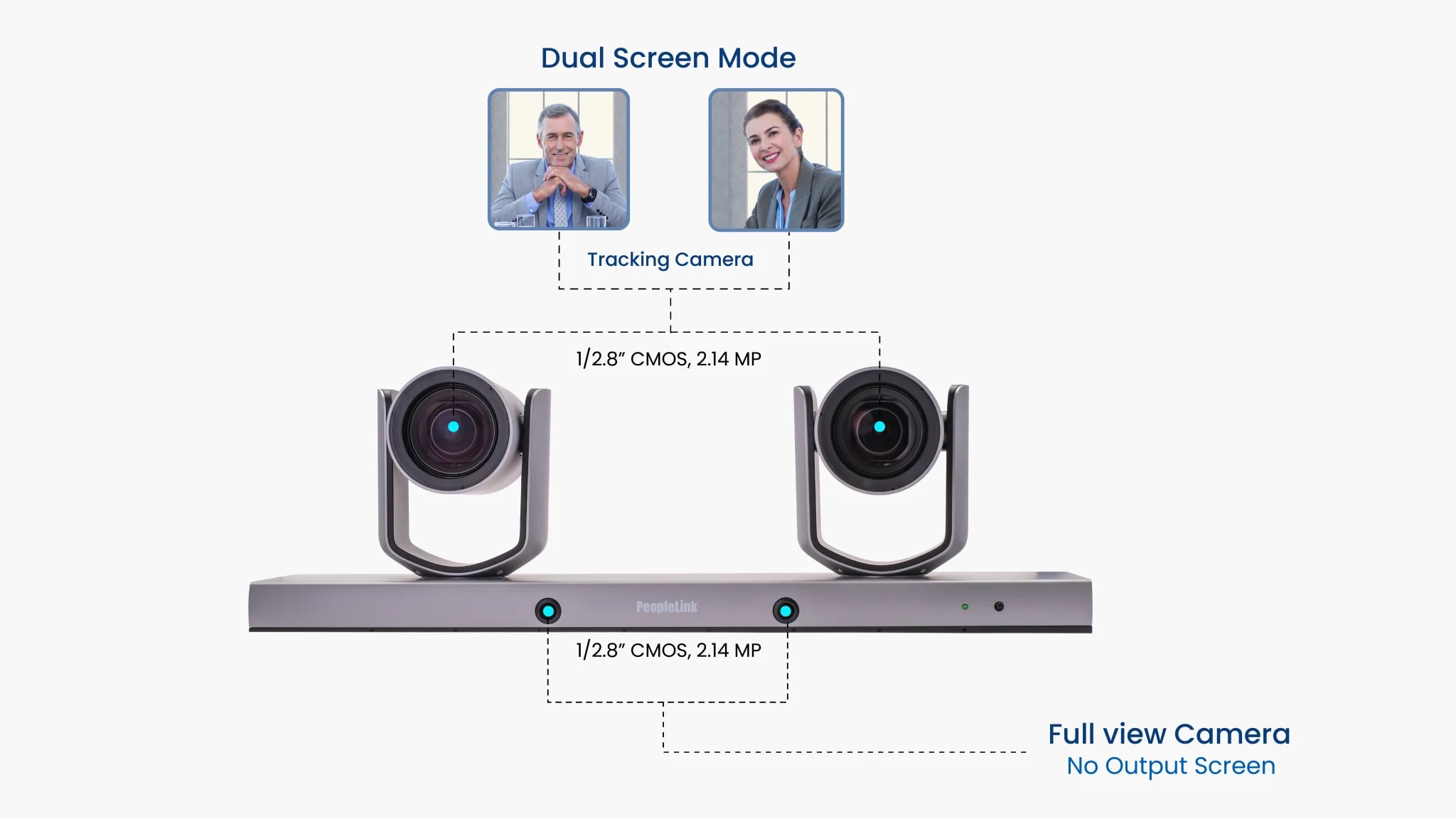

    Dual Screen Mode to Focus on Everyone

    The PeopleLink Speaker Track Pro has a compatible dual-screen mode that allows a seamless shift in the subject the camera focuses on. It works as per the voice of the speaker and focuses on them. The other camera also focuses on different people according to their body or audio motions. The best part is that when no one speaks, it zooms out and covers the whole room.

    Accessories

    peoplelink speaker track pro
    peoplelink speaker track pro
    peoplelink speaker track pro
    peoplelink speaker track pro

    Specifications

    Image Sensor:1/2.8” 2.14MP CMOS
    Image Resolution:FHD 1080p@60fps
    Optical Zoom:12x Optical Zoom ( Dual lens )
    Digital Zoom:12x Digital Zoom ( Dual lens )
    Field of View:72.5° Field Of View ( Dual lens )
    Focal Length:4.9mm ~ 94mm
    Fous:Auto, Manual, PTZ Push, One Push
    Digital Noise Reduction:2D﹠3D digital noise reduction
    White Balance:Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
    PAN:90 ~ -90°
    Tilt:90 ~ -30°
    Video Outputs:HDMI / SDI / Ethernet or USB2.0
    Control Interface:RS-232 / Ethernet
    Control Protocol:VISCA, PELCO-P, PELCO-D
    Video Compression:H.264, H.265, MJPEG
    Presets:255 Presets
    Dual Stream:Dual Stream Support
    peoplelink speaker track pro

    Videos

    FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

    ParameterPeopleLink Teacher/Student 20X CameraSpeaker Track CameraSpeaker Track Pro Camera
    Image peoplelink teacher/student Camera Peoplelink Speaker Track Camera peoplelink speaker track pro camera
    Image Sensor1/2.8" Exmor CMOS, 2.14MPPTZ Camera: 1/2.8” 2.13MP CMOS1/2.8” 2.14MP CMOS
    Image ResolutionFHD 1080p@60fpsFHD 1080p@60fpsFHD 1080p@60fps
    Optical Zoom20x Optical Zoom12x Optical Zoom12x Optical Zoom ( Dual lens )
    Digital Zoom12x Digital Zoom12x Digital Zoom12x Digital Zoom ( Dual lens )
    Field of View59.5° Field Of View72.5° Field Of View72.5° Field Of View ( Dual lens )
    Focal Lengthf=4.7mm~94mm3.9mm ~ 46.8mm4.9mm ~ 94mm
    FousAuto, Manual, PTZ Trigger,Auto, Manual, PTZ Push, One PushAuto, Manual, PTZ Push, One Push
    Illumination0.5 lux (Color), 0.1lux (B/W) 0.5Lux (Color),0.1Lux (B/W) (F1.6-F2.8, AGC ON)0.5Lux (Color),0.1Lux (B/W)
    Digital Noise Reduction2D﹠3D digital noise reduction2D﹠3D digital noise reduction2D﹠3D digital noise reduction
    White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
    PAN170°~+170°90 ~ -90°90 ~ -90°
    Tilt30°~+90°90 ~ -30°90 ~ -30°
    Video OutputsUSB3.0, HD-SDI , IP and DVIHDMI / SDI / Ethernet or USB2.0, Line In/outHDMI / SDI / Ethernet or USB2.0
    Control InterfaceRS-485, RS-232, USB3.0RS-232 / EthernetRS-232 / Ethernet
    Control ProtocolPELCO-D, VISCA, UVCVISCAVISCA, PELCO-P, PELCO-D
    Video CompressionH.265/ H.264/MJPEGH.264, H.265, MJPEGH.264, H.265, MJPEG
    StorageLocal Storage : TF Card255 Presets255 Presets
    Dual StreamDual Stream SupportSupport 1 Tracking, 1 Full-ViewDual Stream Support
    Certifications & ApprovalsCE, ROHS and FCCCE, ROHS and FCCCE, ROHS and FCC

    Disclaimer : Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.
