PeopleLink Speaker Track camera helps to achieve an intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up and full-view images to frame the speaker(s). It frees camera operation during a meeting and enables meeting attendees to focus more on the discussion.

    Speaker Track Camera

    A Transformative Blend of AI and Conferencing

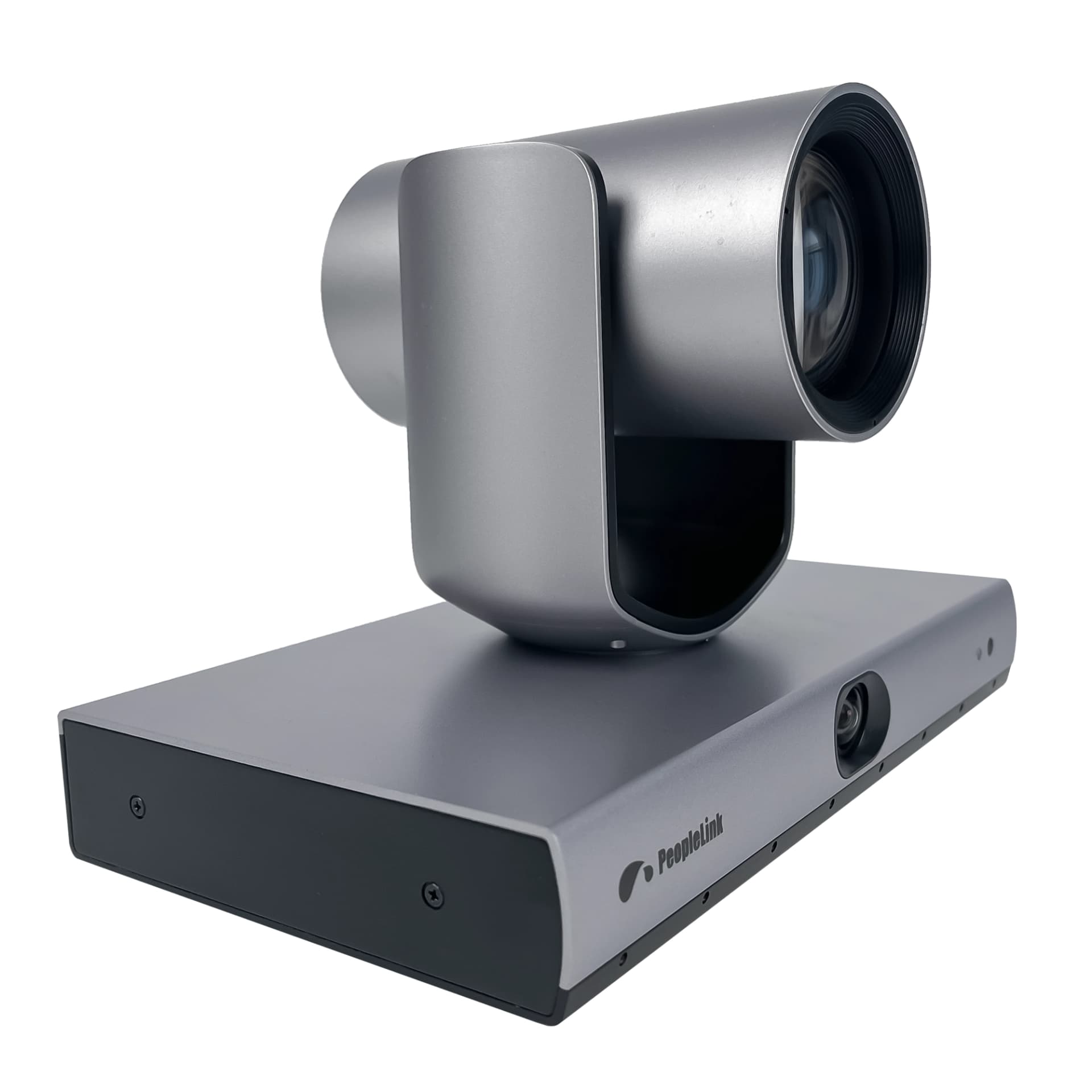

    Speaker Track Camera_V1(Isometric View_2)
    Speaker Track Camera_V1(Front View)
    Speaker Track Camera_V1(TOP View)
    Speaker Track Camera Back View
    Speaker Track Camera_V1(Isometric View_2) Speaker Track Camera_V1(Front View) Speaker Track Camera_V1(TOP View) Speaker Track Camera Back View
    • FHD 1080P @ 60fps
    • 12x Optical Zoom, up to 72.5° FoV
    • 3G-SDI, HDMI, USB2.0, Ethernet
    • H.264/H.265 Video Compression
    • Speaker Tracking, Audio Positioning Technologies
    • Auto Framing, Support AEC
    • Built-in Image Switch Rules

    PeopleLink Speaker Track Camera helps to improve the meeting with audio positioning and intelligent video analysis. The camera makes it possible to avoid manual operation due to automatic switching between close-up and full images based on speaker identification so that all participants can focus only on the discussion contents. This system maximizes the meeting experience by enabling dynamic framing of active speakers, which helps create a more interactive and productive team working environment.

    High Definition Video Clarity

    The Speaker Track camera delivers crystal clear video in 1080P@60fps resolution, providing high-quality videos according to the various connectivity needs. It offers high-definition images that demonstrate clear vision.

    Speaker Track Standard
    Peoplelink Speaker Track Pro Camera

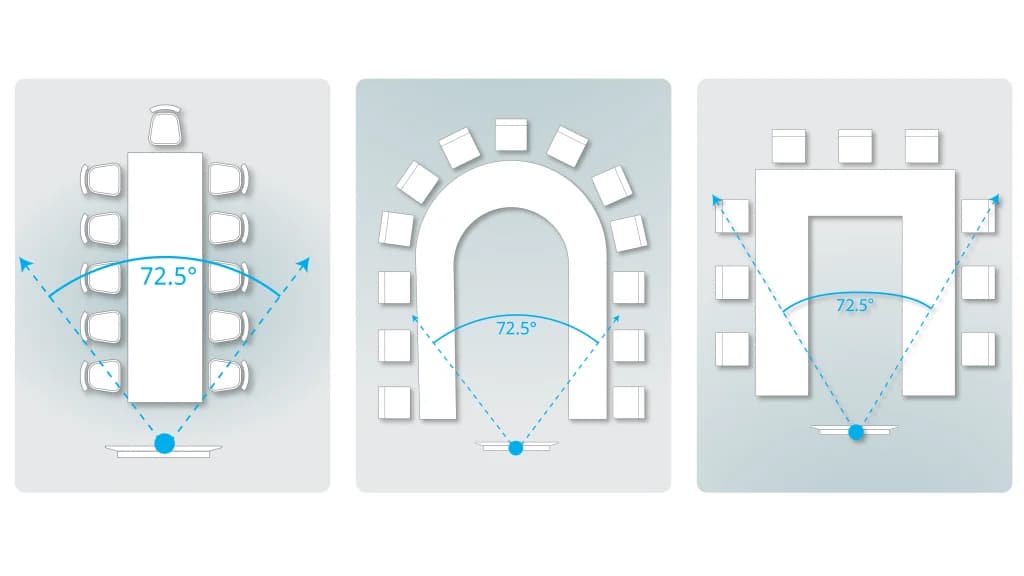

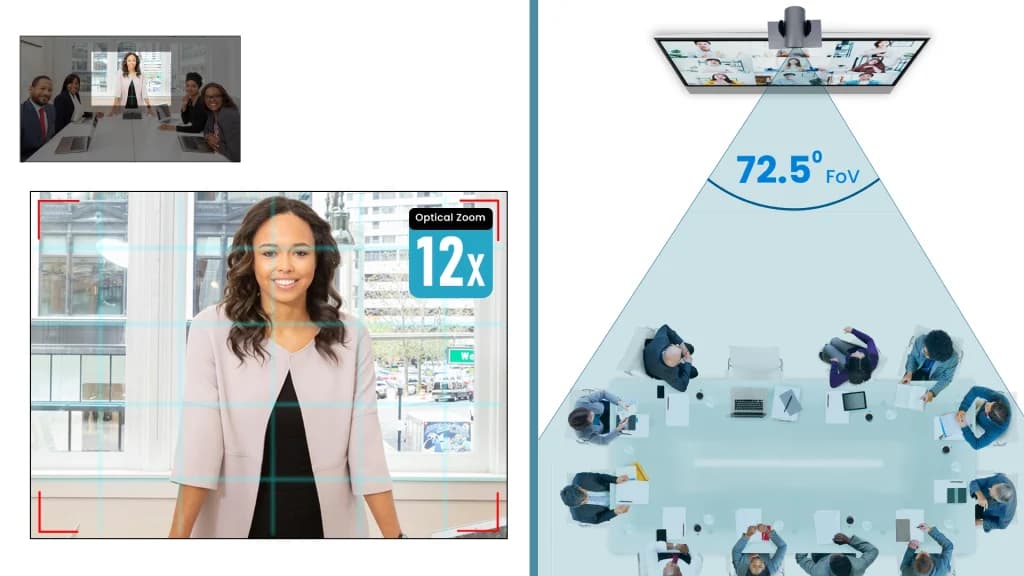

    Dynamic Zoom with Wide Coverage

    This camera has 12x optical zoom and up to 72.5 Field of View, making it versatile for framing different meeting scenarios. The Speaker Track Camera is perfect for meeting rooms, huddle rooms, or even bigger spaces to conduct regular catch-up calls.

    Auto Framing & Speaker Tracking

    The Speaker Track automatically changes close-up pictures for speakers and wide-lens photos for all attendees, saving attendance from manual adjustment and enabling concentrated discussions. It uses audio positioning, body detection, and recognition technologies to frame speakers so they induce a better conference precisely. The AI-based PTZ camera covers every angle in HD.

    Peoplelink Speaker Track Pro Camera
    peoplelink speaker track camera

    Extraordinary Intelligent Tracking

    Equipped with advanced Face Detection and Lock Tracking Algorithm technology, the Speaker Track camera effortlessly identifies and locks onto the lecturer, ensuring seamless tracking even when the lecturer is wearing a mask. The camera’s intelligent adjustment function automatically adapts the tilt angle to match the lecturer’s height.

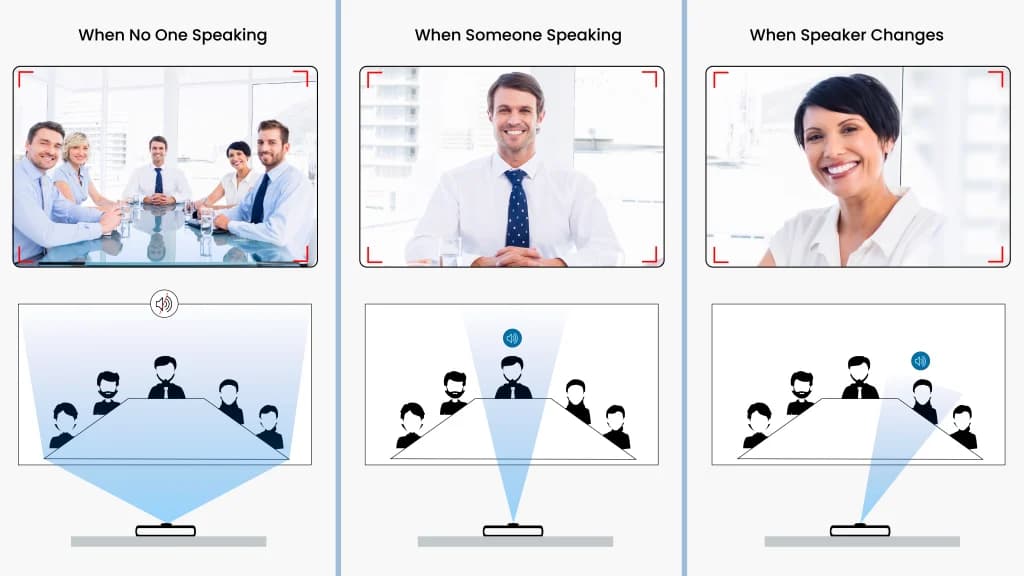

    Precise Voice Positioning

    Featuring a combination of voice source localization and lock tracking technology, this camera skillfully frames all attendees when there is no active speaker. Upon detecting a speaker, the camera dynamically locks onto and tracks them, providing a close-up shot for optimal visibility. The transition between speakers is executed seamlessly as the camera effortlessly locks onto and tracks the new speaker.

    Peoplelink Speaker Track Pro Camera
    Peoplelink Speaker Track Pro Camera

    Strong Anti-Interference Function

    The camera has the technology to focus only on the speaker. Canceling the voice interruption helps to concentrate on the speaker and the people attending any meeting virtually. Apart from that, it doesn’t even pick up regular noises like keyboard typing noises or more.

    Wide Angle HD Lens Transmitting Clear Pictures

    1080p@60fps HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.

    Peoplelink Speaker Track Pro Camera
    Peoplelink Speaker Track

    Application in Multiple Spaces

    It can be used in several locations and spaces. The Speaker Track  camera is primarily a perfect solution for Conference Rooms, Education, Training and Events. It can be beneficial in both virtual and face-to-face meetings.

    Accessories

    Peoplelink Speaker Track Pro Camera Accessories
    Peoplelink Speaker Track Pro Camera Accessories
    Peoplelink Speaker Track Pro Camera Accessories
    Peoplelink Speaker Track Pro Camera Accessories

    Specifications

    Image Sensor:PTZ Camera: 1/2.8” 2.13MP CMOS
    Image Resolution:FHD 1080p@60fps
    Optical Zoom:12x Optical Zoom
    Digital Zoom:12x Digital Zoom
    Field of View:72.5° Field Of View
    Focal Length:3.9mm ~ 46.8mm
    Fous:Auto, Manual, PTZ Push, One Push
    Digital Noise Reduction:2D﹠3D digital noise reduction
    White Balance:Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
    PAN:90 ~ -90°
    Tilt:90 ~ -30°
    Video Outputs:HDMI / SDI / Ethernet or USB2.0, Line In/out
    Control Interface:RS-232 / Ethernet
    Control Protocol:VISCA
    Video Compression:H.264, H.265, MJPEG
    Presets:255 Presets
    Dual Stream:Support 1 Tracking, 1 Full-View
    Peoplelink Speaker Track Pro Camera

    Videos

    FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

    ParameterPeopleLink Teacher/Student 20X CameraSpeaker Track CameraSpeaker Track Pro Camera
    Image peoplelink teacher/student Camera Peoplelink Speaker Track Camera peoplelink speaker track pro camera
    Image Sensor1/2.8" CMOS, 2.14MPPTZ Camera: 1/2.8” 2.13MP CMOS1/2.8” 2.14MP CMOS
    Image ResolutionFHD 1080p@60fpsFHD 1080p@60fpsFHD 1080p@60fps
    Optical Zoom20x Optical Zoom12x Optical Zoom12x Optical Zoom ( Dual lens )
    Digital Zoom12x Digital Zoom12x Digital Zoom12x Digital Zoom ( Dual lens )
    Field of View59.5° Field Of View72.5° Field Of View72.5° Field Of View ( Dual lens )
    Focal Lengthf=4.7mm~94mm3.9mm ~ 46.8mm4.9mm ~ 94mm
    FousAuto, Manual, PTZ Trigger,Auto, Manual, PTZ Push, One PushAuto, Manual, PTZ Push, One Push
    Illumination0.5 lux (Color), 0.1lux (B/W) 0.5Lux (Color),0.1Lux (B/W) (F1.6-F2.8, AGC ON)0.5Lux (Color),0.1Lux (B/W)
    Digital Noise Reduction2D﹠3D digital noise reduction2D﹠3D digital noise reduction2D﹠3D digital noise reduction
    White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
    PAN170°~+170°90 ~ -90°90 ~ -90°
    Tilt30°~+90°90 ~ -30°90 ~ -30°
    Video OutputsUSB3.0, HD-SDI , IP and DVIHDMI / SDI / Ethernet or USB2.0, Line In/outHDMI / SDI / Ethernet or USB2.0
    Control InterfaceRS-485, RS-232, USB3.0RS-232 / EthernetRS-232 / Ethernet
    PELCO-D, VISCA, UVCVISCAVISCA, PELCO-P, PELCO-D
    Video CompressionH.265/ H.264/MJPEGH.264, H.265, MJPEGH.264, H.265, MJPEG
    StorageLocal Storage : TF Card255 Presets255 Presets
    Dual StreamDual Stream Support Support 1 Tracking, 1 Full-ViewDual Stream Support
    Certifications & ApprovalsCE, ROHS and FCCCE, ROHS and FCCCE, ROHS and FCC

    Disclaimer : Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.

    Documents

    Product Datasheet Download
    User Manual Download
